Partners – Wirepas | Rythmos® by Intrex
Technology Partner

Rythmos® + Wirepas

Self-organizing, decentralized mesh networking powering Safety Without Walls™ across every inch of your community.

Rythmos® by Intrex
Wirepas
Wirepas

About the Technology

Wirepas Mesh — The Network Behind Rythmos

Wirepas Mesh is a wireless network protocol built on a multi-hop, self-organizing, and fully decentralized architecture. Its decentralized topology enables extremely dense network deployments — making it ideal for the complex, high-density environments of senior living communities. All devices (mobile tags and anchors) are battery-operated, eliminating the need for cabled infrastructure while delivering reliable indoor localization and continuous resident safety intelligence.

Rythmos Hardware on Wirepas

The Complete Device Ecosystem

Flagship Resident Wearable

Kallos™ Wearable

A smartwatch-style resident wearable delivering real-time indoor location, automatic fall monitoring, nurse call, 2-way audio, and wander management — IP67 waterproof, worn on wrist or neck.

Rythmos Kallos Wearable smartwatch

Hardware Specifications

Dimensions45 × 38 × 12 mm
DisplayColor touchscreen
ButtonsForce touch · Side button
Battery LifeUp to 1 month
Charge Time~2 hours (0–100%)
Water ResistanceIP67 · Shower & bath safe
Wear StylesWrist or neck lanyard
FeedbackHaptic · Visual (LED)
Mesh NetworkRythmos® Mesh · Wirepas 2.4 GHz
Indoor PositioningRythmos® Mesh · ~3 m accuracy
Outdoor PositioningGPS-LTE
Communication2-way staff ↔ resident (VoLTE)
Firmware UpdatesOver-the-air (OTA)
AccessorySecure locking band (optional)

Key Capabilities

📍 Real-Time Location Indoor & outdoor · Patented technology
🆘 Nurse Call Button Integrated one-press alert
🤸 Fall Monitoring ML-powered auto monitoring
🚶 Wander Management Personalized & flexible alerting
🔓 Access Control Proximity door unlock
💬 2-Way Comms VoLTE staff ↔ resident messaging
📊 Health & Activity Steps, engagement data
🔄 Hot Swappable Ensures complete resident coverage

Wear Configurations & Accessories

Config A · Standard Wrist Band

Standard adjustable band included. Fits most wrist sizes. Available in multiple colours. Suitable for daily wear including showering.

Config B · Neck / Lanyard Wear

Lanyard attachment allows the Kallos to be worn around the neck. Ideal for residents who prefer not to wear a wrist band.

Config C · Secure Locking Band (Optional)

Difficult-to-remove design for at-risk residents. Magnetic unlocking tool with cap and lanyard loop. Waterproof and flexible for comfort.

Config D · System Integration

Integrates with the full Rythmos® ecosystem — Access + Wander Readers, Anchor mesh network, Gateway, and Care Manager — for centralized resident monitoring.

Deployment & Maintenance

Battery

  • Up to 1 month per charge
  • Charges 0–100% in ~2 hours
  • No battery replacement required

Water Resistance

  • IP67 — dust tight & waterproof
  • Safe for showering & bathing
  • Suitable for bath or spa environments
  • Locking band also waterproof rated

Firmware

  • Over-the-air (OTA) updates
  • No on-site technician required
  • Managed via Rythmos® Care Manager

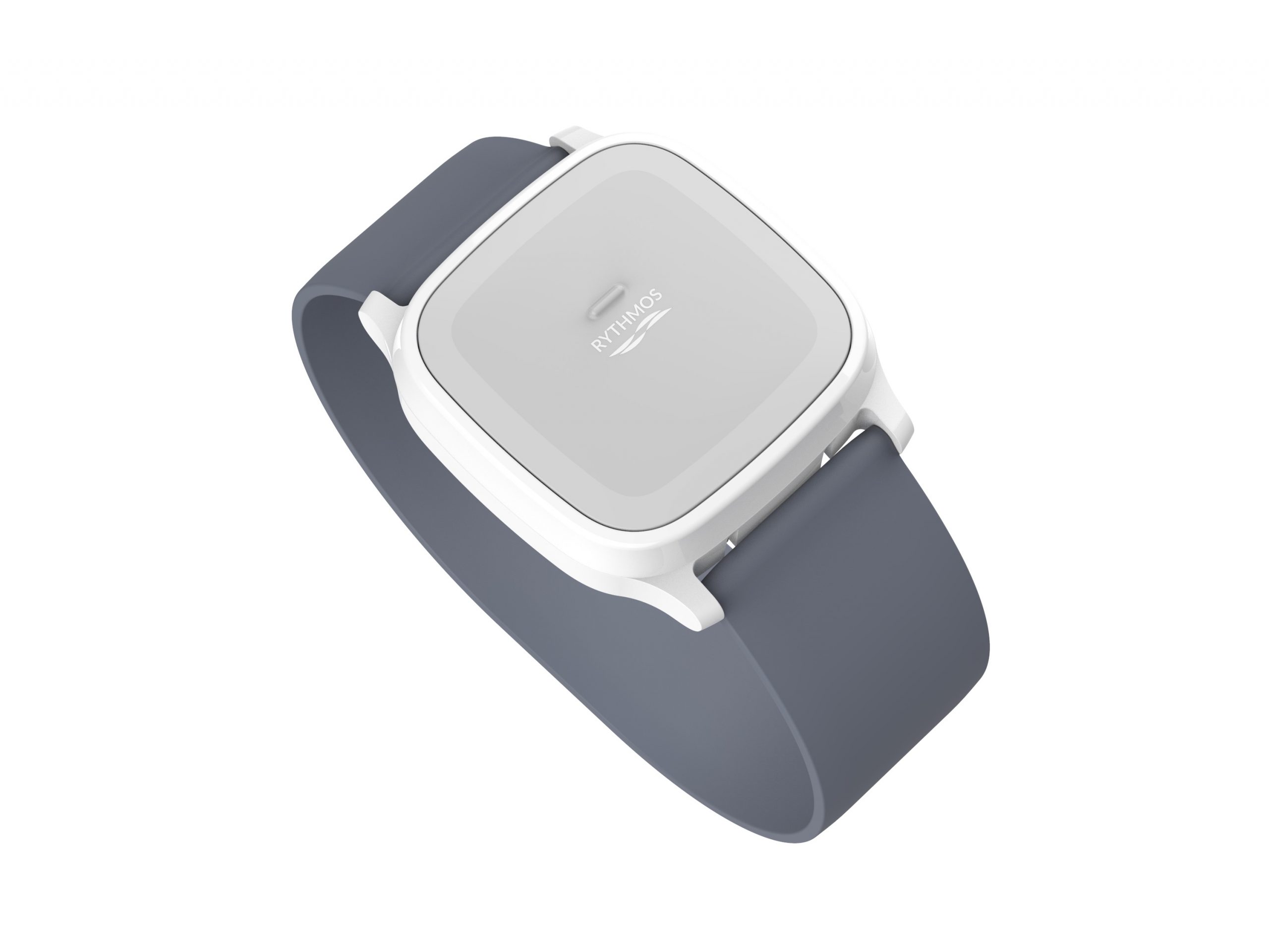

Rythmos AnyWearable pendant wearable device

Rythmos AnyWearable

Provides positioning and alert data both within and outside of the Wirepas network. Featuring an integrated Cat-M1 cell module, accelerometer, press button, and LED visual indicator, this wearable delivers critical details whether the resident is on the network or not. Includes rechargeable battery, soft button, and multiple wear styles with customizable band and necklace options.

Specifications

  • Wirepas 5.0
  • nRF52832
  • Alert Button
  • Accelerometer
  • GPS
  • GSM / LTE
  • NFC
  • 2nd Bluetooth Module
  • IP67 Rated

Suggested Use

  • Access Control
  • Nurse Call
  • Indoor & Outdoor RTLS
  • Duress

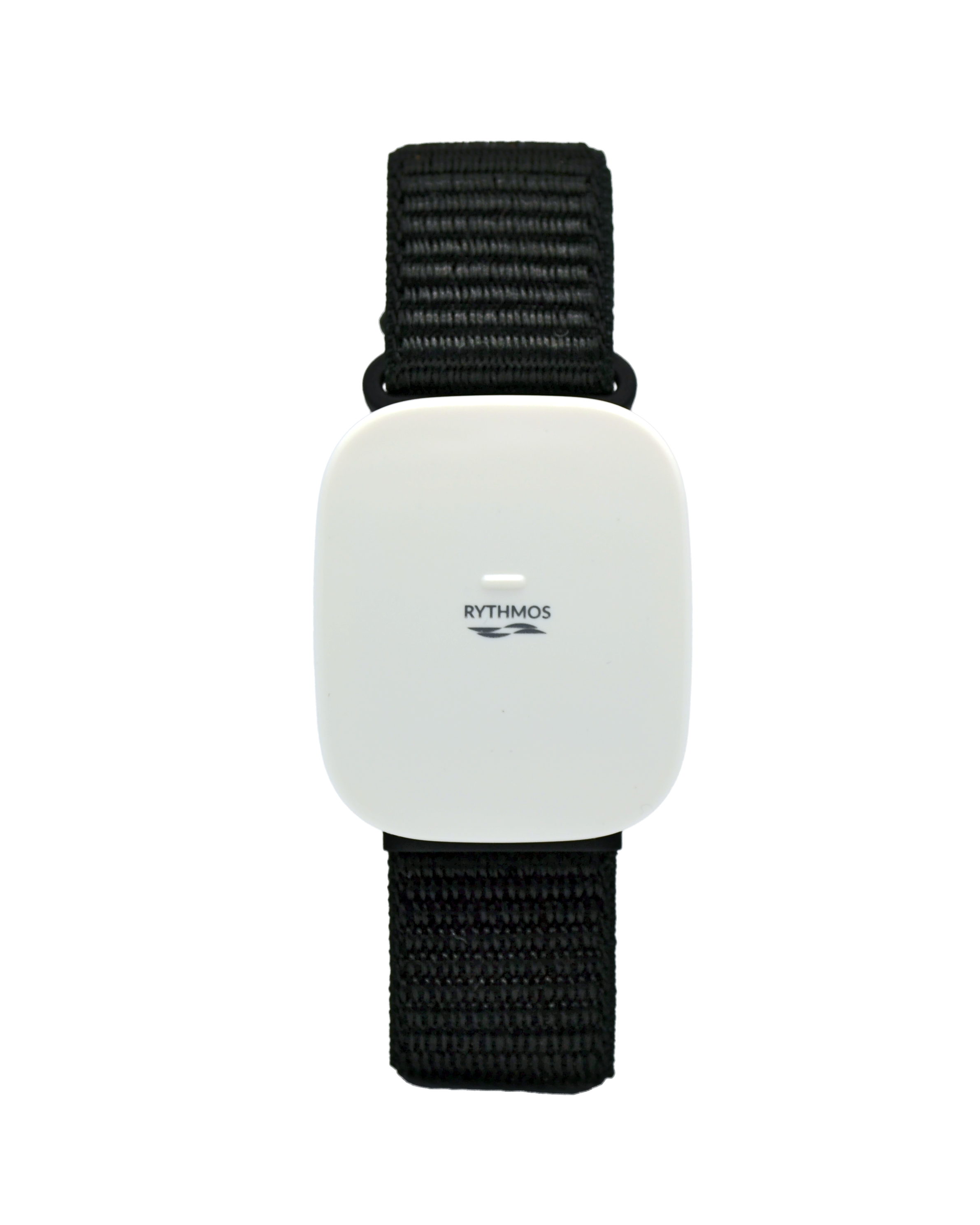

Rythmos Wearable device

Rythmos Wearable

Provides positioning and alert data within the Wirepas network. Equipped with an accelerometer, press button, and LED visual indicator, this wearable delivers critical resident data while on-network. Features a CR2430 battery, soft button, multiple wear styles, and customizable band and necklace options.

Specifications

  • Wirepas 5.0
  • nRF52832
  • Alert Button
  • Accelerometer
  • IP67 Rated

Suggested Use

  • Access Control
  • Nurse Call
  • Indoor RTLS
  • Duress

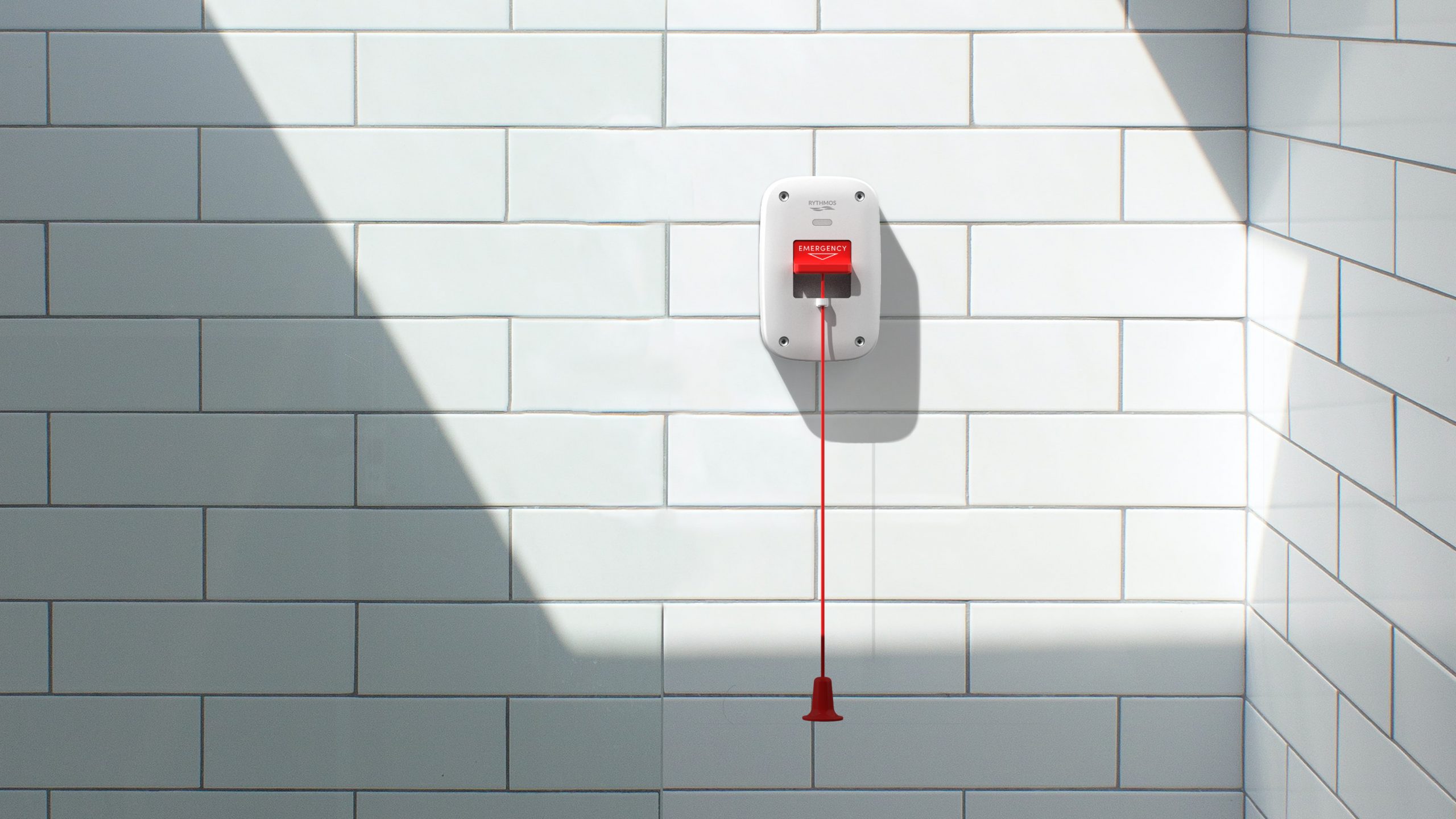

Rythmos Pull Cord emergency alert device mounted in bathroom

Rythmos Pull Cord

A stationary device that allows users to pull down on a PVC cord to trigger an alert over the Wirepas network. Features an LED indicator that illuminates to confirm alert transmission, a slide switch for cordless activation, 2 AA batteries, and surface or single gang box mounting.

Specifications

  • Wirepas 5.0
  • nRF52832
  • LED Indicator
  • PVC Cord
  • IP67 Rated

Suggested Use

  • Nurse Call
  • Duress

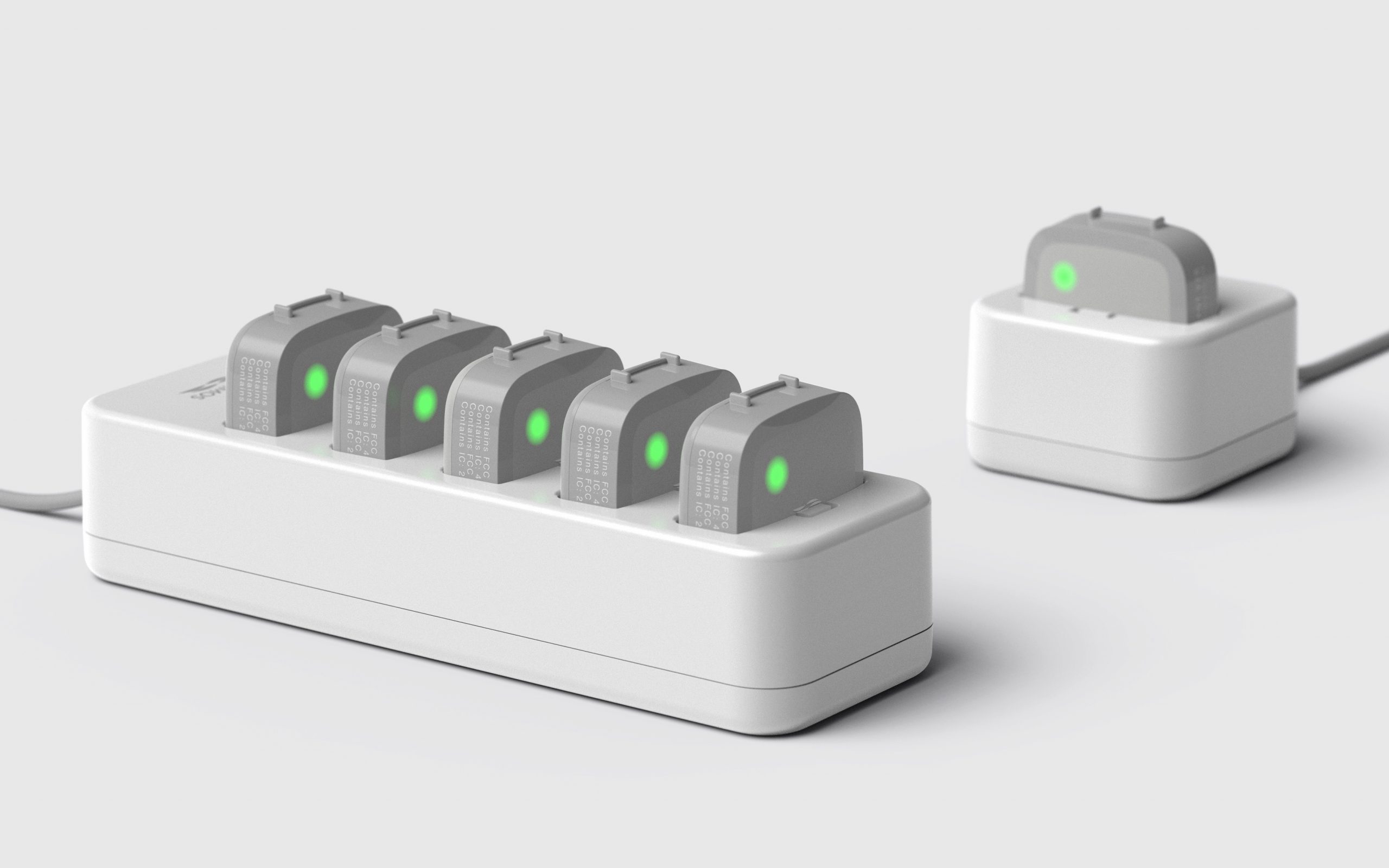

Rythmos AnyWearable Charging Dock — 1-port and 5-port configurations

Rythmos AnyWearable Charging Dock

Easy charging for the Rythmos AnyWearable in both 1-port and 5-port configurations. Securely holds AnyWearable pods and includes a mounting bracket for desk or wall placement.

Specifications

  • 24V Barrel Plug Power Supply

Suggested Use

  • Charge Rythmos AnyWearables

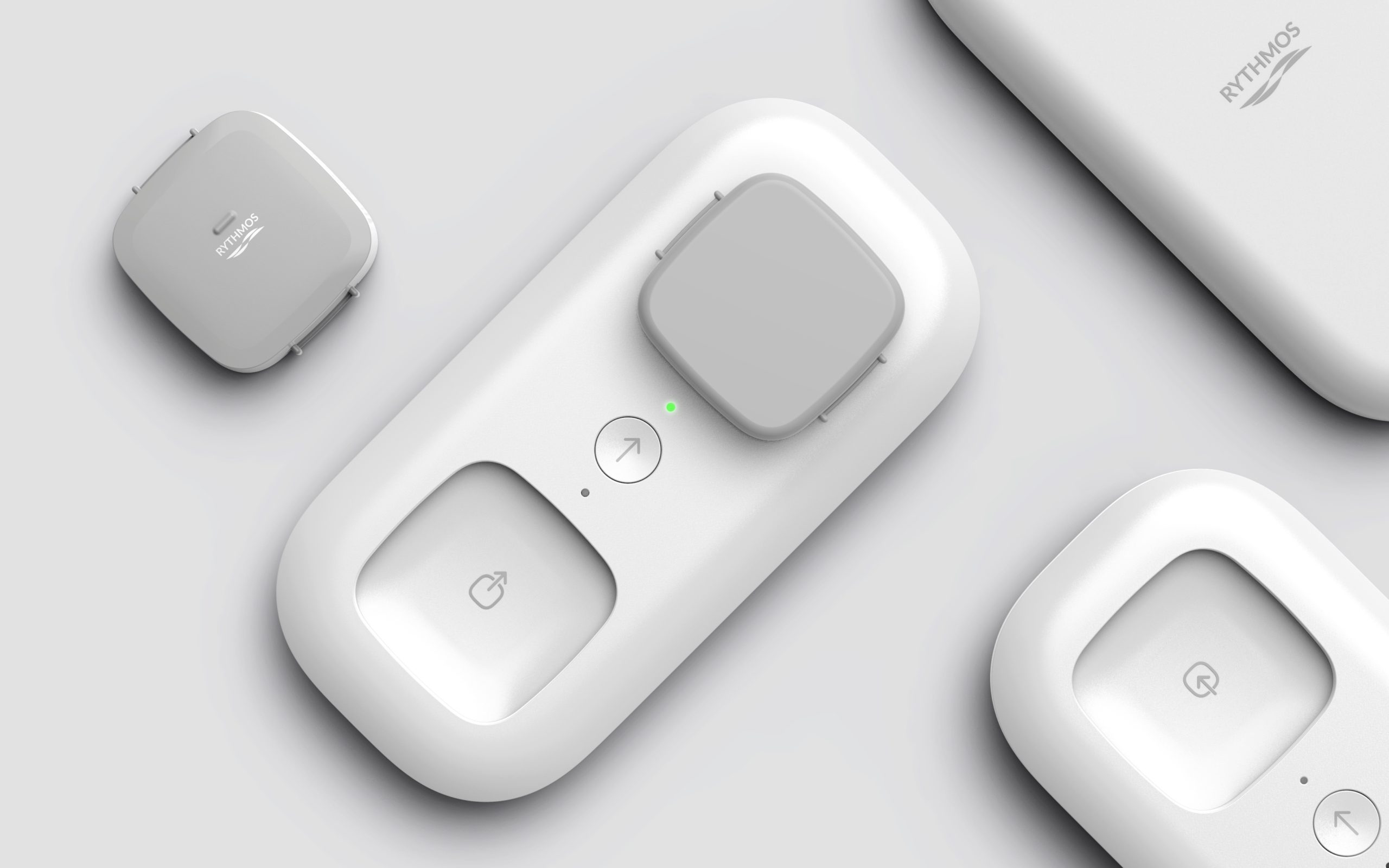

Rythmos AnyWearable Swap Pad flat layout

Rythmos AnyWearable Swap Pad

Allows swapping low-battery AnyWearable pods for fully charged ones while retaining all settings within the Wirepas network. Place the low-battery pod on one side, the charged pod on the other, and press transfer. Wireless, portable, pocket-sized, and features a rechargeable LiPo battery with LED confirmation indicators.

Specifications

  • Wirepas 5.0
  • nRF52832
  • NFC
  • LED Indicator
  • USB-C Power Adapter

Suggested Use

  • Nurse Call
  • Swap Rythmos AnyWearables
Rythmos Wireless Smart Lock on door

Rythmos Wireless Smart Lock

Unlocks doors via proximity using BLE, NFC fobs, smartphones, and remote commands. Highly configurable — default locked or unlocked, adjustable scan distance and unlock duration. Fits most standard doors with 4 AA batteries, ergonomic design, and multiple color options.

Specifications

  • Wirepas 5.0
  • nRF52832
  • NFC
  • 2nd Bluetooth Module
  • Manual Key
  • LED Indicator
  • Buzzer

Suggested Use

  • Office Doors
  • Smart Buildings
  • Apartments
  • Senior Living Communities

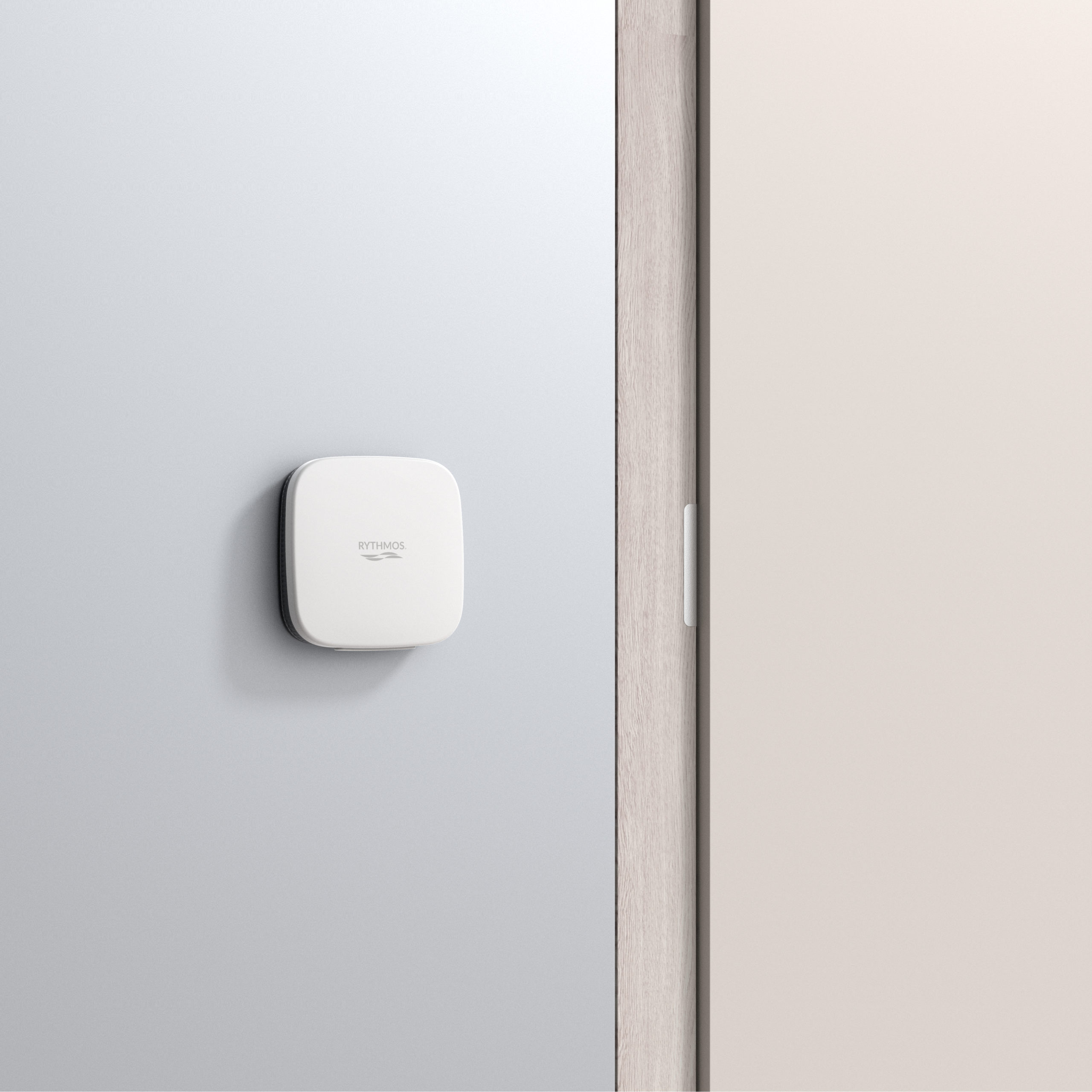

Rythmos Access Control Reader mounted on wall beside door

Rythmos Access Control Reader

Enables residents to unlock doors via proximity using BLE, NFC fobs, smartphones, and remote commands. Supports electrified strike doors and MagLocks with 4 AA battery backup, LED indicators, and surface or single gang box mounting. Adjustable unlock duration and scan distance give operators full control.

Specifications

  • Wirepas 5.0
  • nRF52832
  • IP67 Rated
  • NFC
  • LED Indicator
  • Buzzer

Suggested Use

  • Access Control
  • Handwashing Station (custom firmware)

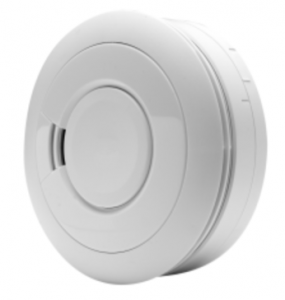

Rythmos Smoke Detector

Rythmos Smoke Detector

An optical smoke detector with a 10-year sealed lithium battery, piezoelectric sounder, and test/hush button. Easy to install, sending alerts over the Wirepas network without any cabled infrastructure.

Specifications

  • Wirepas 5.0
  • nRF52832
  • Built-In Sounder — 85dBA @ 3m
  • LED Indicator
  • Photoelectric Technology

Suggested Use

  • Access Control
  • Nurse Call
  • Indoor & Outdoor RTLS
  • Duress

See Rythmos + Wirepas in Action

Schedule a free demo and discover how Safety Without Walls™ transforms resident safety at your community.
